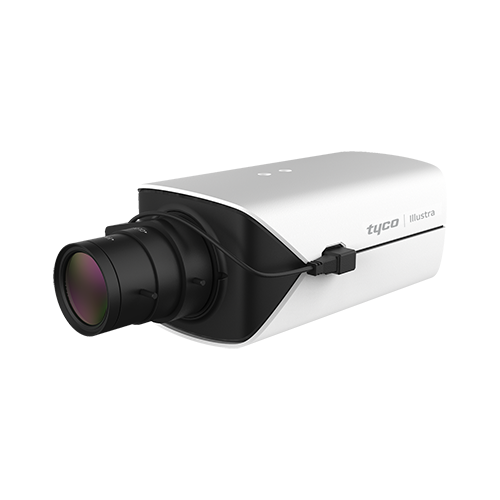

Standard V Series 2MP Box
Model:Standard V Series 2MP Box
The V series 2MP box camera offers high-resolution image and advanced video intelligence analytics meeting customer needs for commercial deployments. The camera provides high quality video in challenging lighting conditions with True Wide Dynamic Range up to 120dB. With advanced video analytics on the edge, the camera automatically analyzes captured video and triggers events to be utilized for real-time alerts, forensic analysis, or business insights.
| Camera Features | Standard V Series 2MP Box |
| Audio | Line IN × 1, Line OUT × 1 |
| Alarm Input/Output | Alarm 2 in / 2 out |
| API | ONVIF (Profile S/G), HAPI3, iAPI3 |
| Backlight Compensation | Yes |
| Corridor Mode | Yes |
| Cyber Security | HTTPS / IP Filter / IEEE 802.1X /Blacklist & whitelist/account security/telnet access control/serial password |
| Day/Night | IR cut filter with auto switch |
| Defog | Yes |
| Digital Noise Reduction | 2D/3D DNR |
| Dimensions | 142mm × 79mm × 64mm |
| Effective Pixels | 1920 × 1080 |
| Ethernet | RJ45 |
| Face Detection | Yes |
| H.264 | Yes: Base Line / Main Profile / High Profile |
| H.265 | Yes: Main Profile @Leve4.1 High Tier |
| Imager | 1 / 2.8" CMOS |
| Image Orientation Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR. |
| Intelligent Video Analytics | Perimeter Protection：Line crossing, region Entering/Exiting/Intrusion (human/motor vehicle/ non-motor vehicle classification) Target Counting：Line crossing human/motor vehicle/non-motor vehicle counting Exception Detection：Scene change, video blur and video colour cast detection Face Detection：Face detection and face capture |
| Lens Type | DC-Iris |
| Max Frame Rate | 30fps @ all resolution |
| Minimum Illumination | 0.005 Lux,F1.2,AGC ON; 0.008 Lux，F1.6,AGC ON； 0 lux with IR |
| Multiple Streaming | Main Stream: 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) Sub Stream: 60Hz:720P/D1/CIF /480×240 (1~30fps) 50Hz:720P/D1/CIF/480×240 (1~25fps Third Stream: 60Hz:D1/CIF /480×240 (1~30fps) 50Hz:D1/CIF/480×240 (1~25fps) |
| Network Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, Unicast, Multicast |
| Noise Reduction | 2D/3D DNR |
| Onboard Storage | Built-in micro SD/SDHC/SDXC slot |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| ONVIF Compliant | Yes |
| Power Draw | < 11W |
| Power Supply | AC24V/DC12V / PoE |
| Privacy Zones | 4 zones video mask |
| Resolution Options | 1080P ( 1920 x 1080 ), 720P ( 1280 x 720 ), D1, CIF, 480 x 240 |
| Shutter Speed | PAL: 1 / 25 s ~ 1 / 100000 s, NTSC: 1 / 30 s ~ 1 / 100000 s |
| Simultaneous Users | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| S/N Ratio | ≥52 dB |
| Video Streams | Triple streams |
| Weight | 0.65kg |
| Wide Dynamic Range | True WDR, 120dB |
